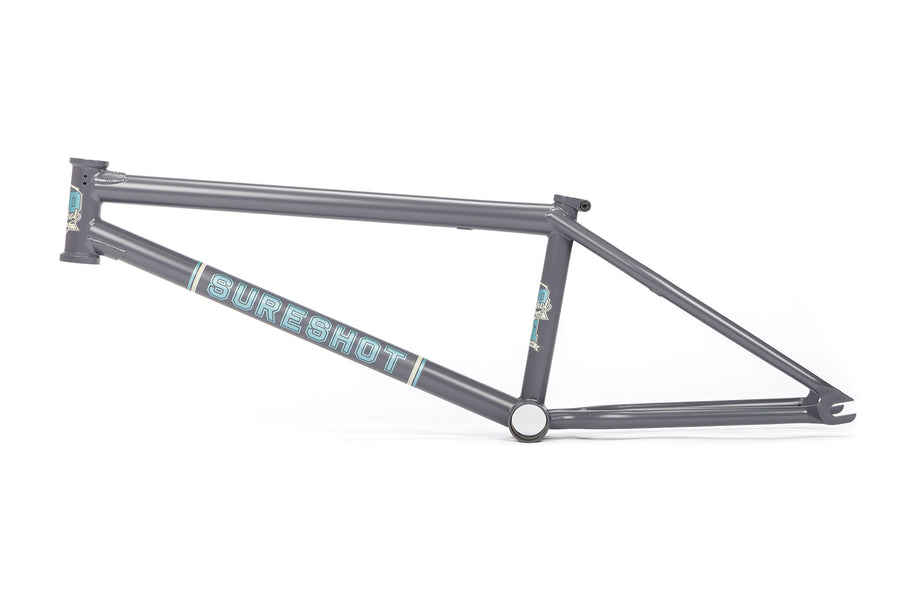

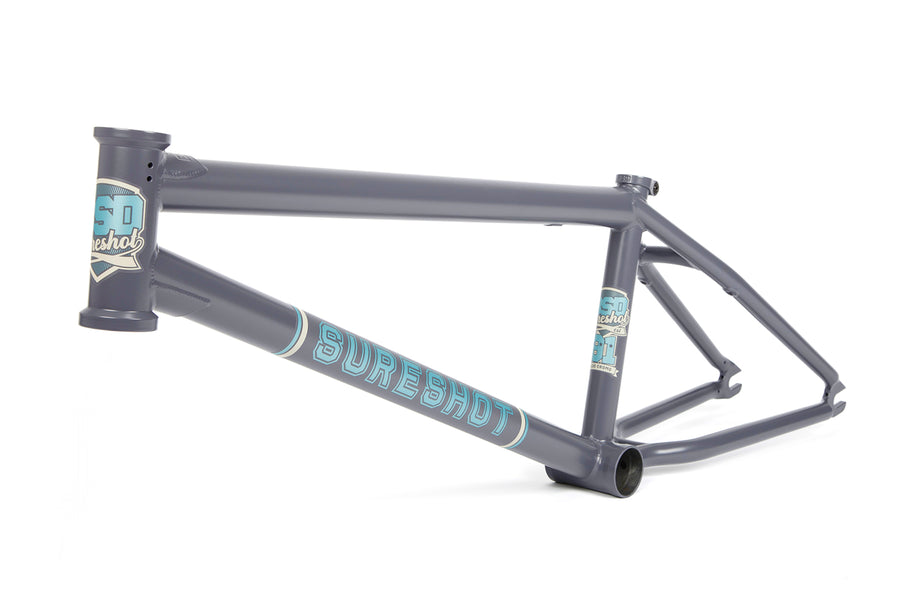

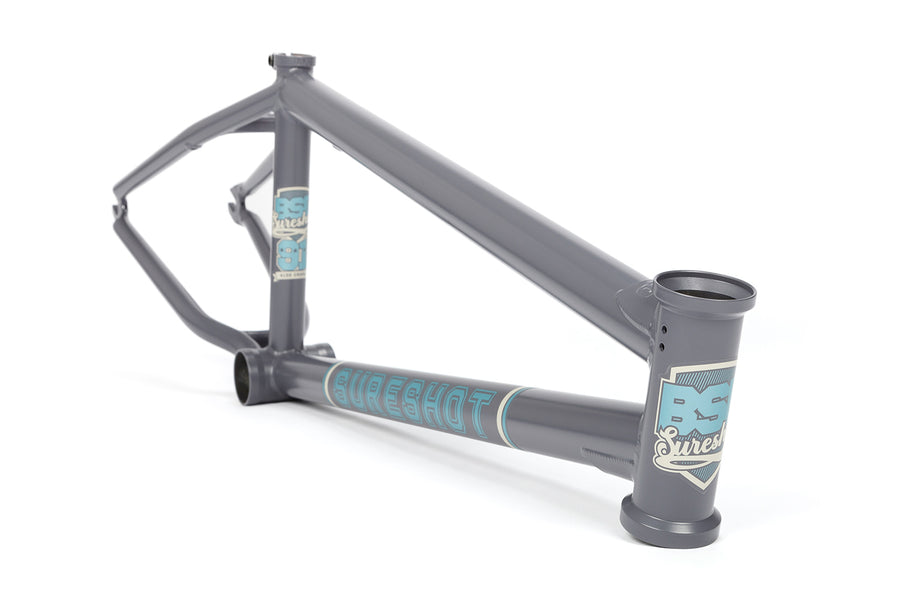

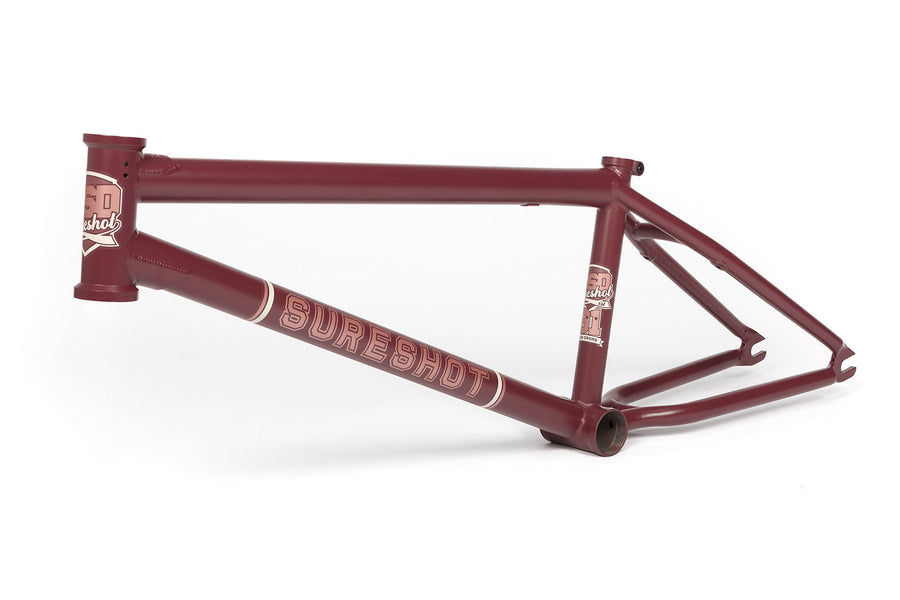

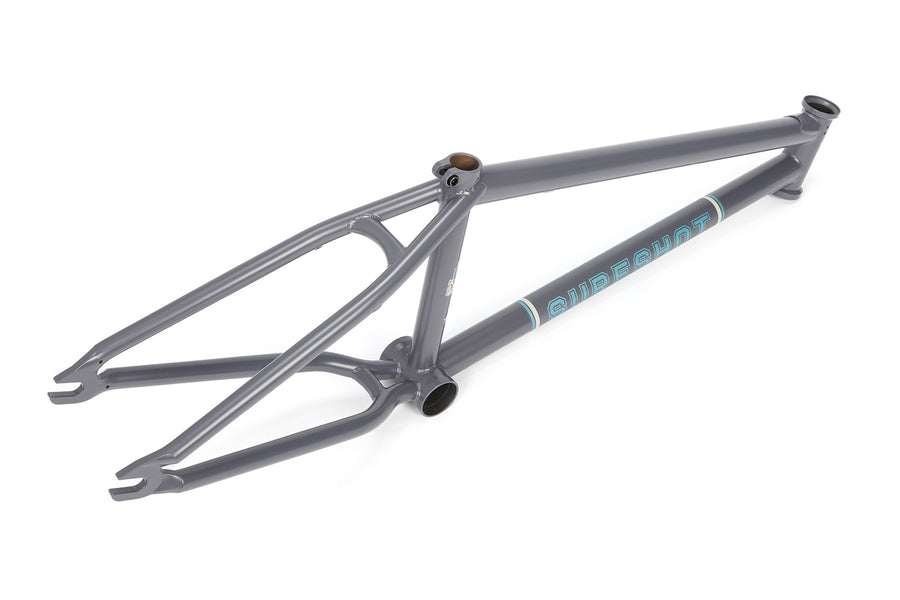

SURESHOT FRAME
The Sureshot is designed with a geometry better suited for ramps, parks, and trails compared to our other frames. Featuring a low BB, longer rear end, mellower head angle, and removable brake lugs, this frame is a true all-rounder. Built for high-speed roasting! 'Cause you can't, you won't, and you don't stop...

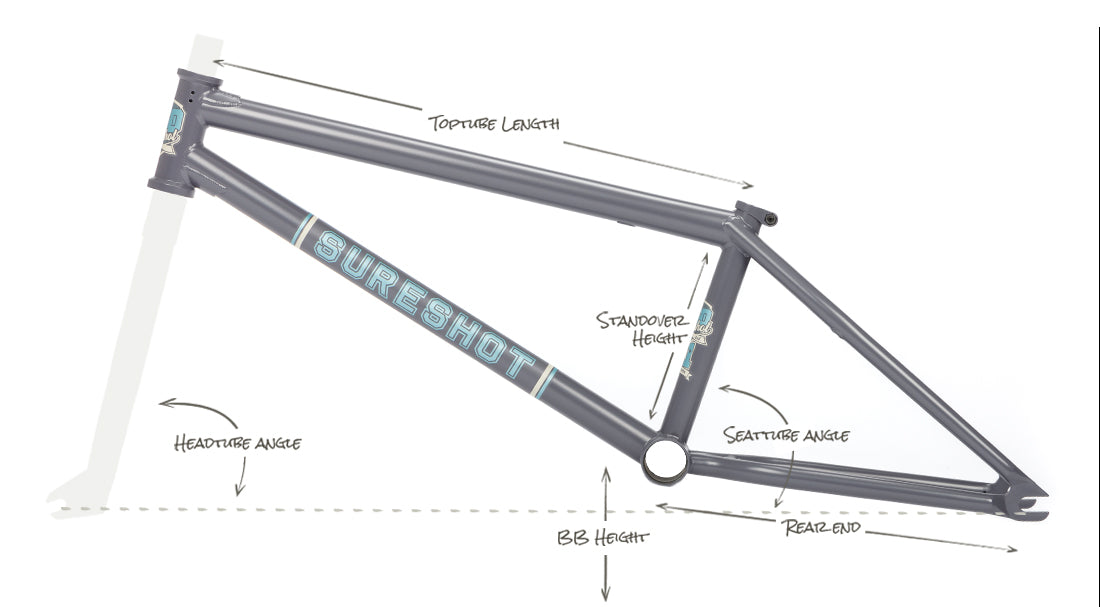

| Toptube lengths | 20.7" / 21" / 21.3" / 21.7" |
| Headtube angle | 74.75° |
| Headtube length | 117mm |
| Seattube angle | 71° |
| Rear end length | 13.4 - 13.9" |
| BB Height | 11.5" |
| Standover height | 9" |
| Weight | 5lbs |
| Brake mounts | removable - brake kit available separately |
| Tubing | Sanko Japanese seamless 4130 CrMo / triple butted |

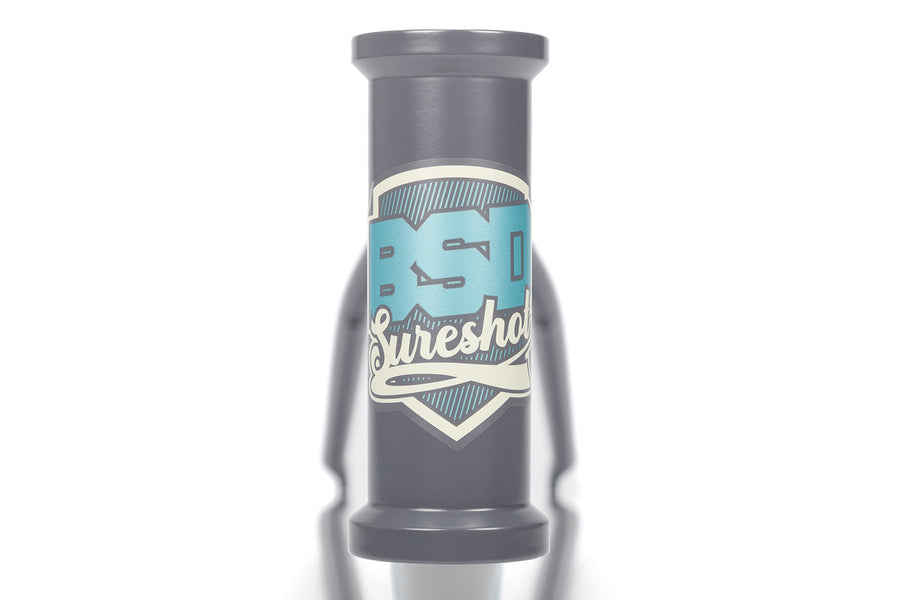

| Headtube | Heat treated 4130 CrMo / CNC / Offset thickness |
| Bottom Bracket | Heat treated 4130 CrMo / CNC machined |
| Dropouts | Heat treated 4130 CrMo / Invest cast |
| Seatclamp | Heat treated 4130 CrMo / Invest cast |

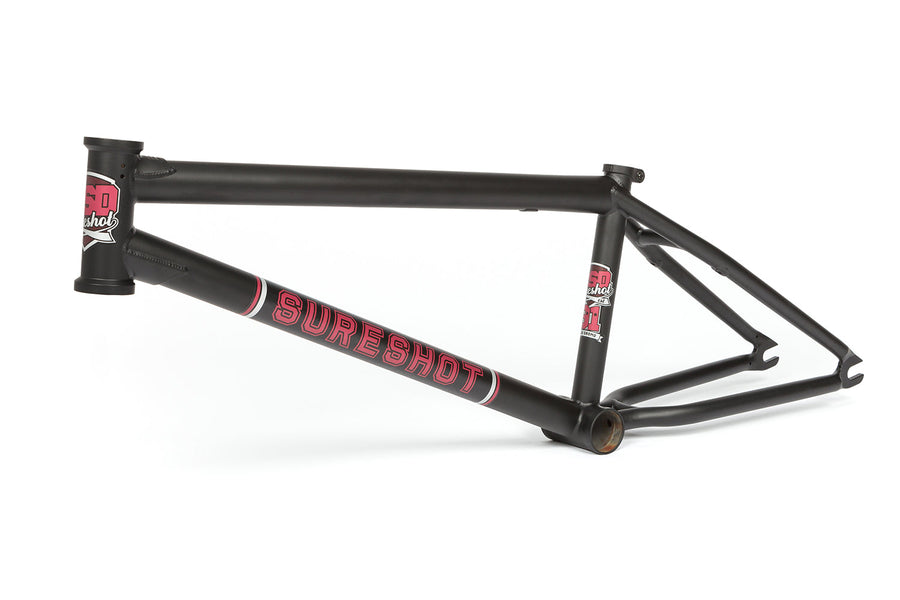

| Colours | BLUE GROOVE / RED OXIDE / FLAT BLACK |
Design Features

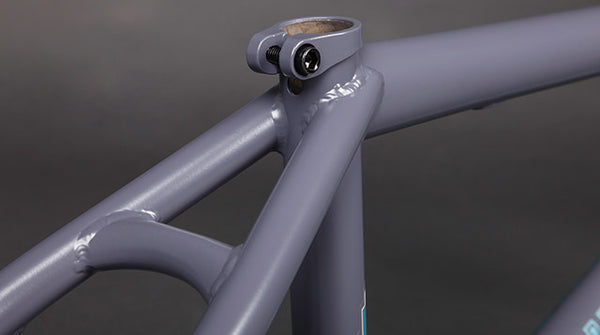

INVEST CAST SEATCLAMP
The invest cast seatclamp is brazed onto the frame so there's no need for a separate clamp. Also the slot cut beneath the seatclamp gives more clamping power less torque on the bolt.

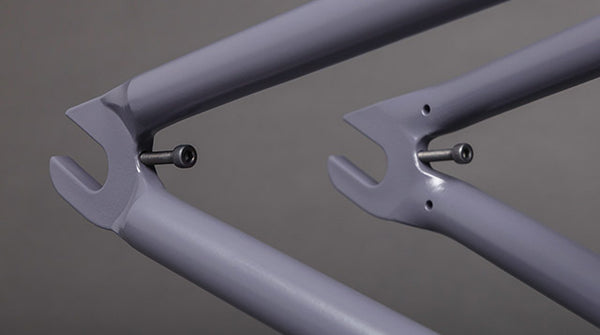

INVEST CAST DROPOUTS
Because the dropout is cast as one piece it's much stronger than a plate welded to a tube. 7mm thick to provide good support for your axle, and the small shape has been designed for grinding meaning there's no overhang to catch on ledges or rails, also the dropout is heat treated before welding making it extra tough. And finally there's an integrated chain tensioner bolts inside.
INVEST CAST SEATSTAY BRIDGE
We've used a new heat treated invest cast seatstay bridge on the Sureshot frame which offers a stronger and stiffer rear end.
