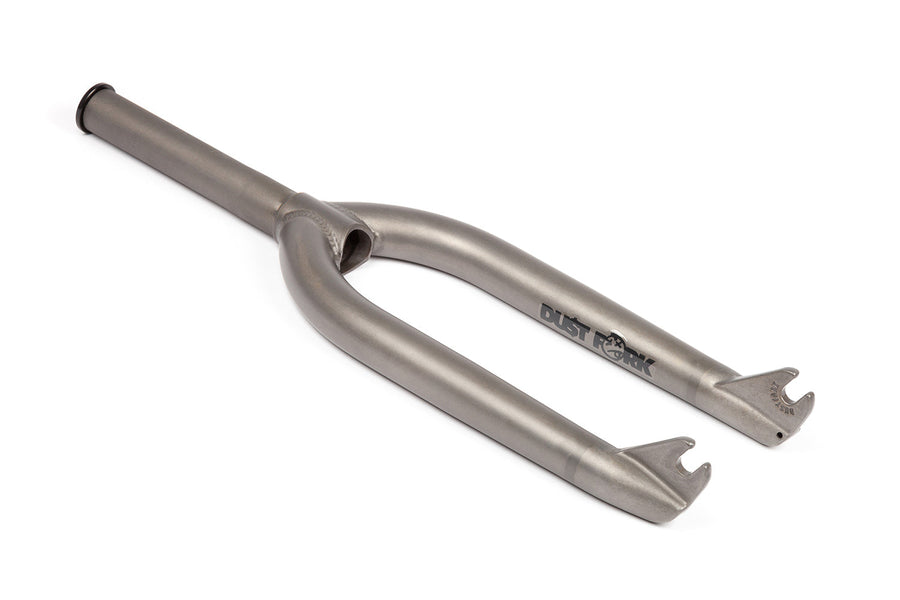

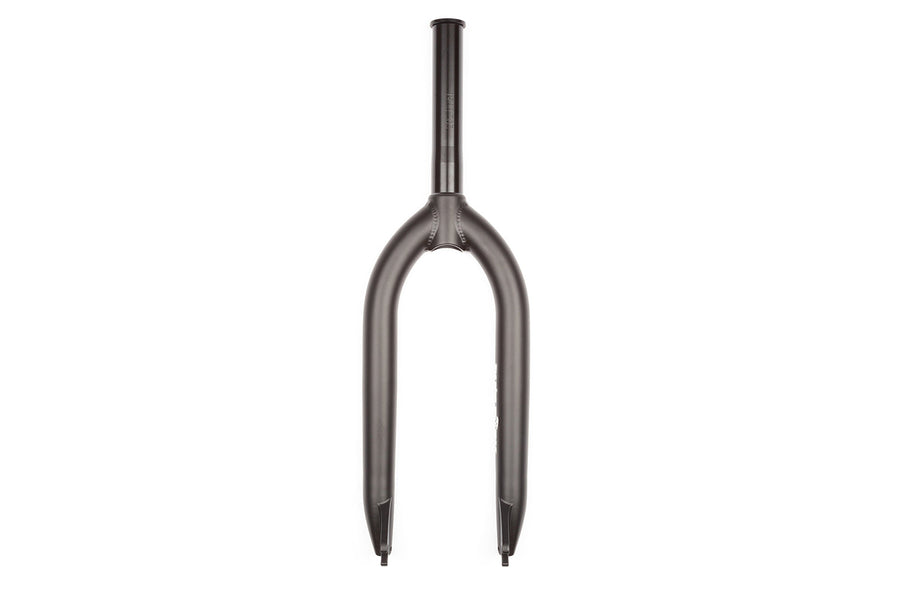

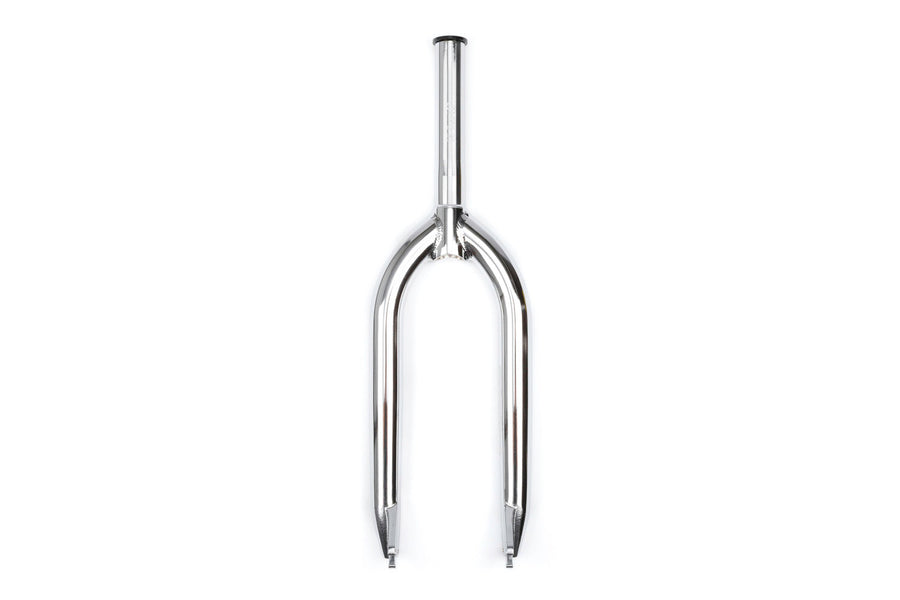

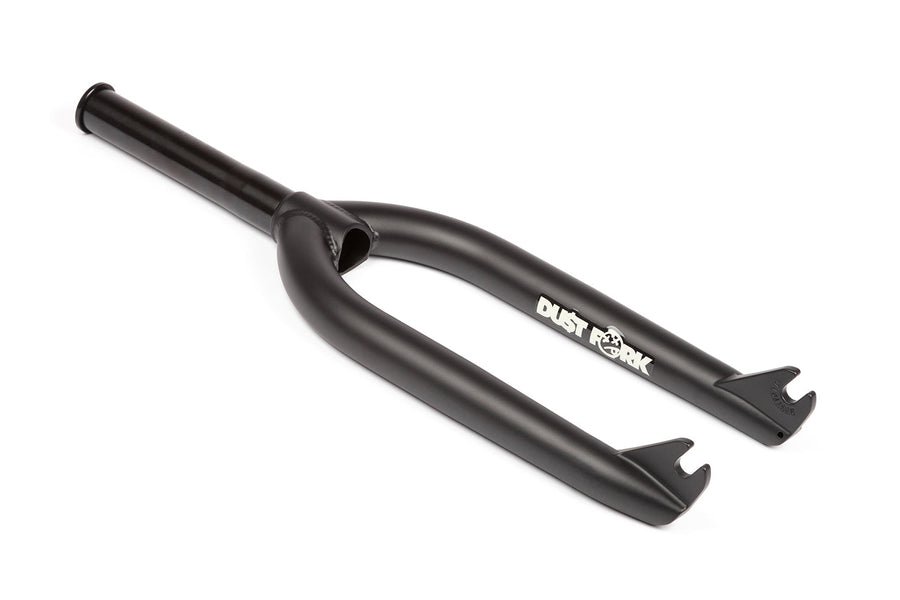

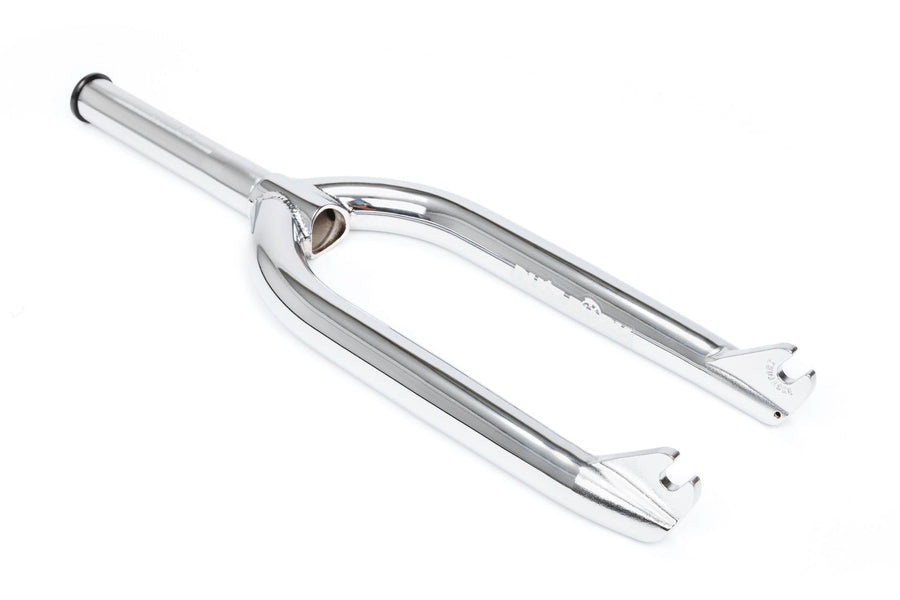

DUST FORK
The Dust fork is our new mid offset fork, with a 26mm offset it’s more responsive than the Acid fork but not quite as twitchy as the Jonesin’ fork.
| Offset | 26mm |
| Dropouts | Invest cast |
| Steerer length | 157mm |
| Steerer | 1 piece fully CNC heat treated chromo |
| Legs | Tapered triple butted heat treated 4130 chromoly |
| Tubing | Sanko Japanese Chromo |
| Treatment | Full post weld heat treatment for maximum strength to weight ratio |
| Bearing race | Integrated |
| Top Bolt | 7075-T6 al with M24 thread |
| Weight | 2.2lbs |
Design Features

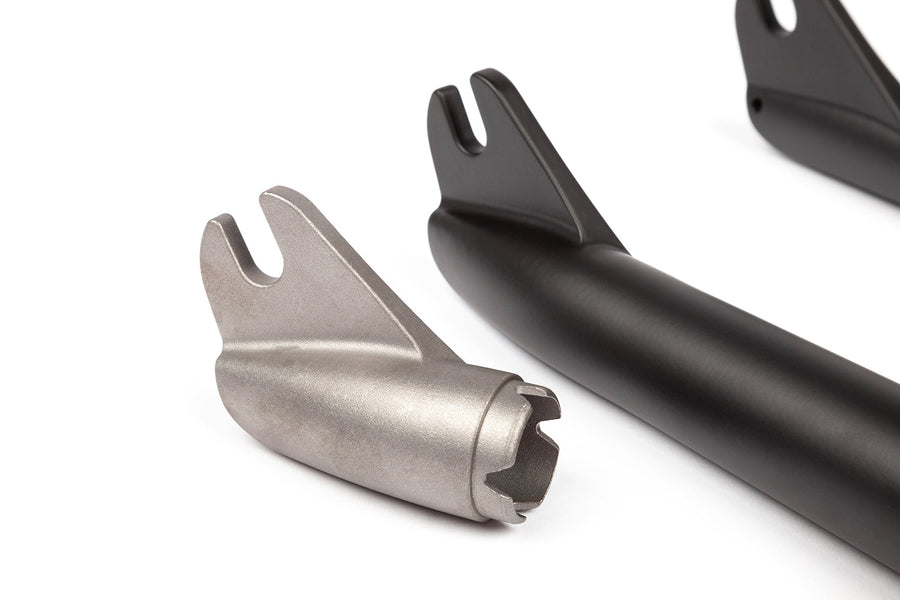

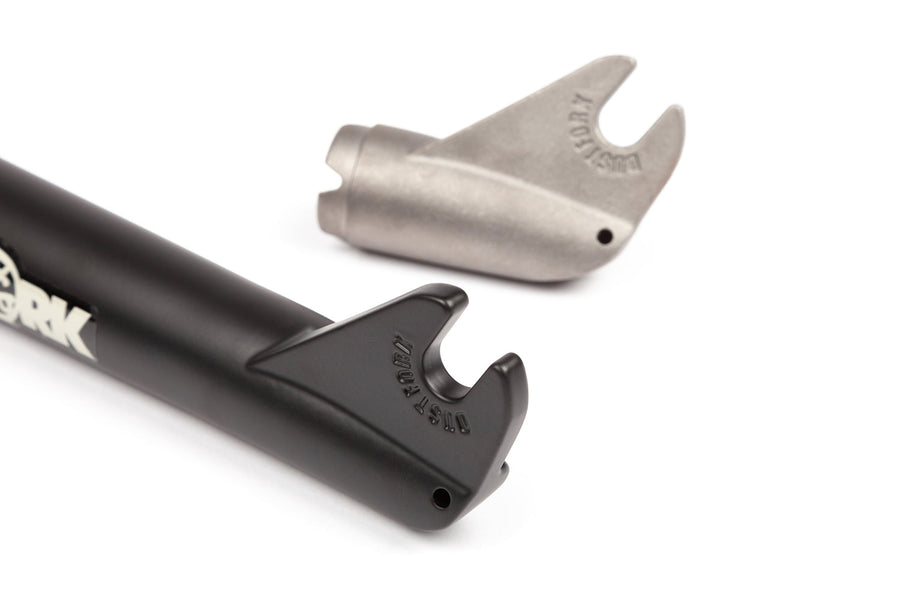

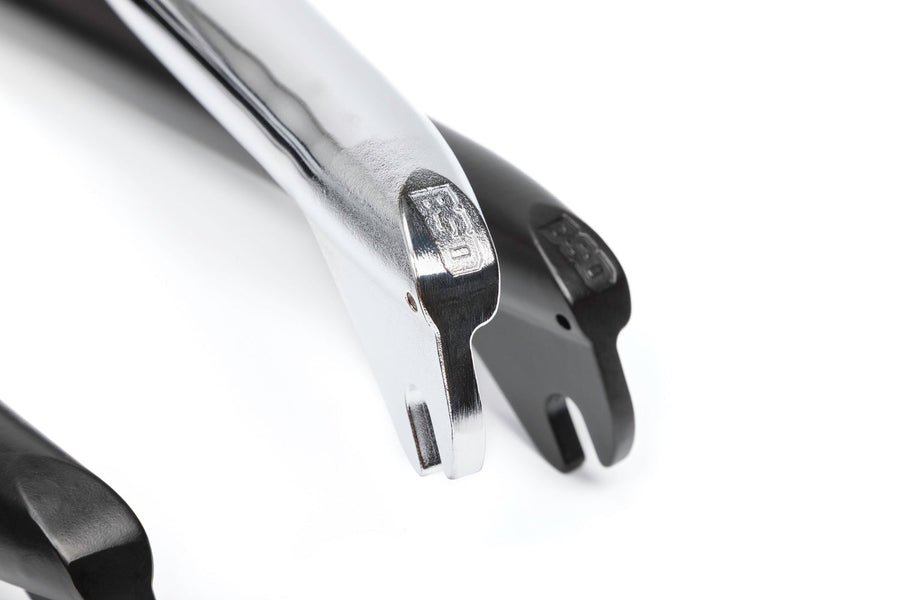

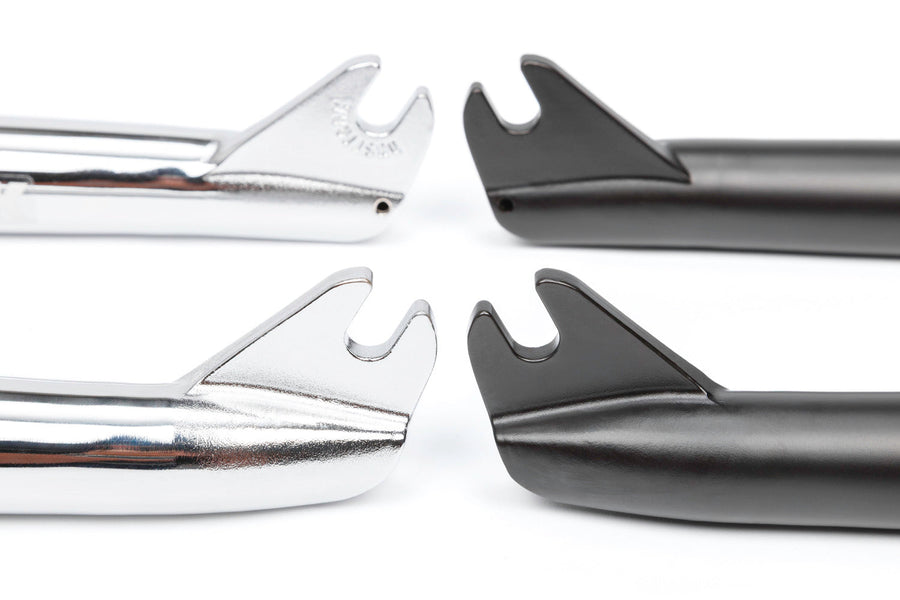

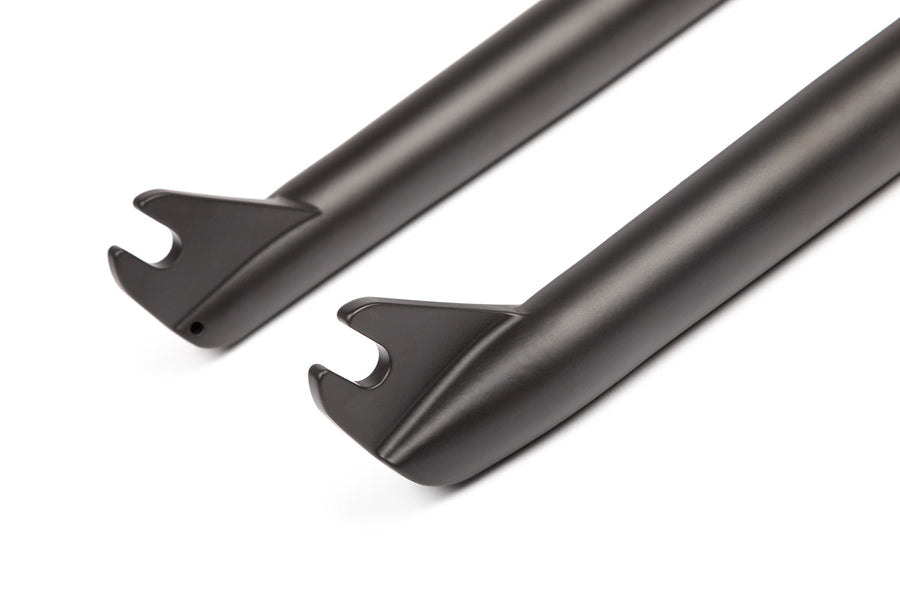

INVEST CAST DROPOUTS
The dropout is cast as one piece, much stronger than a plate welded to a tube. 6mm thick to provide good support for your axle, and the small shape has been designed for grinding on, meaning there's no overhang to catch on ledges or rails, also the dropout is heat treated before welding making it extra tough.
26MM OFFSET
26mm is our midway sized offsetmore responsive than the Acid fork's 30mm offset, but not quite as twitchy as the 22mm offset Jonesin’ fork.
Essentially, more offset = slower steering, more stable ride, good for ramps and trails.
Less offset = more responsive steering, good for tech front wheel moves.
ONE PIECE STEERER TUBE
One piece fully CNC machined heat treated 4130 chromoly steerer tube. Thick in all the right places create the perfect strength to weight ratio. Including a machined lower integrated headset race and M24 thread 7075 topcap.
Heat treatment is your friend.
